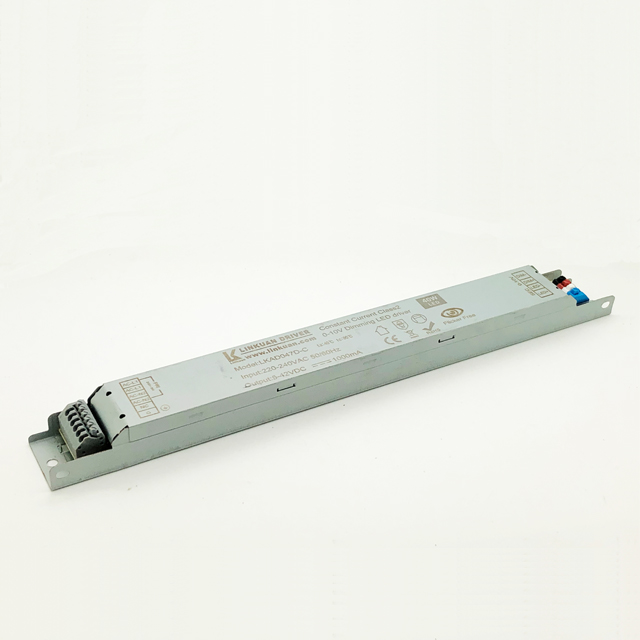

LKAD047D-D 50W 5-42V 1200mA Linear Lamp DALI dimming  led driver

Features

• 200-240Vacc(50/60Hz) Input
• Hight efficiency,hight PF,good steady;
• Isolated,DALI dimming ,adjusting much smoothly

• independent, ClassⅡconstant current type;
• short circuit/over load/over current/ over temperature protection;
• 100% full load burn-in test;
• degree of protection IP20;
• Special for LED linear lamp, LED grille lamp;
• 5 years warranty.

---

More Details

Model			LKAD047D-D
輸入             Input	AC電壓范圍/AC Voltage range		100-277V
	頻率/Frequency		50/60hz
	諧波/THD		≤10%/230VAC
	功率因數/Power factor		0.98
輸出      Output	額定電壓/Rated voltage		40V
	空載電壓/No-load Voltage		48V
	DC電壓范圍/DC voltage range		10-40V
	DC電流范圍/DC current range		1200mA
	電流精度/Current precision		(+/-)5%
	額定功率/Rated power
	輸入紋波/Output ripple			<200mV
	開機延時/Setup Time		≤0.5s/230VAC
使用環境    Environment Requirements	工作溫度/濕度要求                    Operating Temp./RH		-30～+45℃/20～95%
	儲存溫度,濕度要求                   Storage Temp./RH		-40～+80℃/10～95%
安全和電磁兼容	認證編號/Certificate		IEC61347-2-13   EN6147-2-13
			EN55015
			Fcc Part15B
其他	尺寸/Size		284x29x20mm
	重量/Net weight		/
