Features

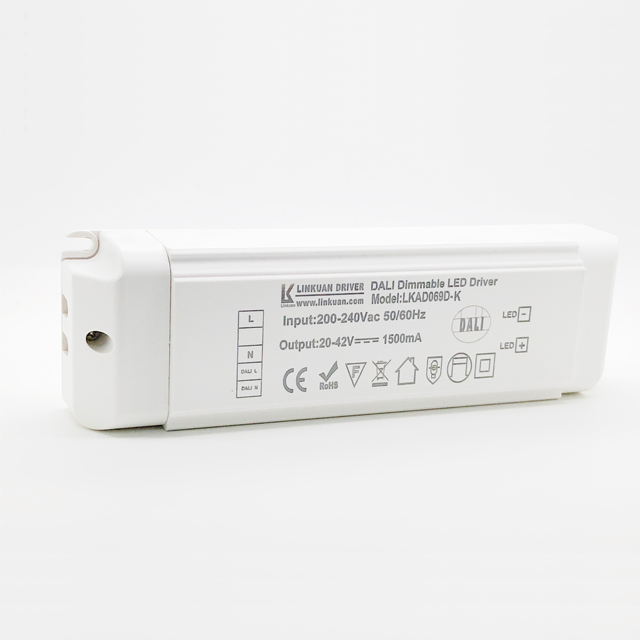

| Model | LKAD069D-K | |||||
| 輸入 Input | AC電壓范圍/AC Voltage range | 200-240V | ||||
| 頻率/Frequency | 50/60hz | |||||
| 諧波/THD | <15% | |||||
| 功率因數/Power factor | 0.96/230VAC | |||||
| 輸出 Output | 額定電壓/Rated voltage | 40V | ||||
| 空載電壓/No-load Voltage | 48V | |||||
| DC電壓范圍/DC voltage range | 20-42V | |||||
| DC電流范圍/DC current range | 1450-1500ma | |||||
| 電流精度/Current precision | (+/-)3% | |||||
| 額定功率/Rated power | 60W | |||||
| 開機延時/Setup Time | ≤0.5s/230VAC | |||||
| 使用環境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+45℃/20～95% | ||||
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | |||||
| 安全和電磁兼容 | 認證編號/Certificate | |||||
| 其他 | 尺寸/Size | 185（L）X55(W)X37(H)mm | ||||
| 重量/Net weight | ||||||
