| Authentication: |
|

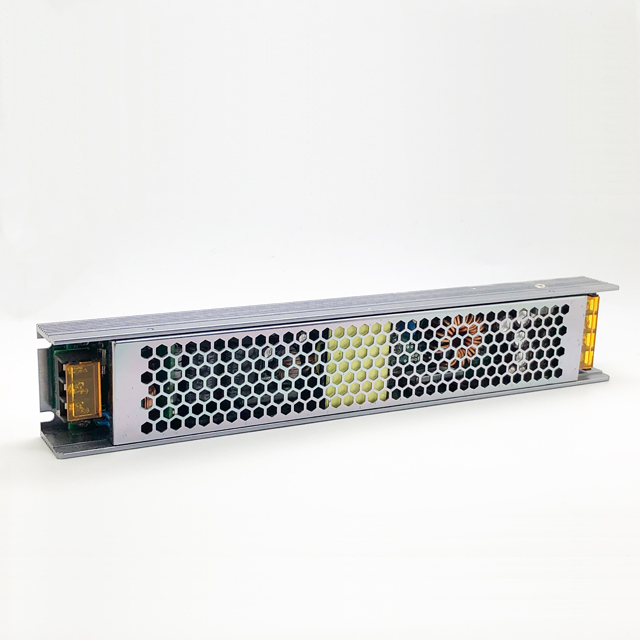

Model |
|
LKAD200V-C |
|
輸入Input |
AC電壓范圍/AC Voltage range |
220-265V |
|
頻率/Frequency |
50/60hz |
|
|
諧波/THD |
≤8%/230VAC |
|
|
功率因數(shù)/Power factor |
0.6 |
|
|
輸出Output |
額定電壓/Rated voltage |
12V |
|
空載電壓/No-load Voltage |
12V |
|
|
DC電壓范圍/DC voltage range |
12V |
|
|
DC電流范圍/DC current range |
10000-16000mA |
|
|
電流精度/Current precision |
(+/-)4% |
|
|
額定功率/Rated power |
188W |
|
|
輸入紋波/Output ripple |
<200mV |
|
|
開機(jī)延時/Setup Time |
≤0.5s/230VAC |
|
|
使用環(huán)境Environment Requirements |
工作溫度/濕度要求Operating Temp./RH |
-30～+45℃/20～95% |
|
儲存溫度,濕度要求 Storage Temp./RH |
-40～+80℃/10～95% |
|
|
安全和電磁兼容 |
認(rèn)證編號/Certificate |
IEC61347-2-13 EN6147-2-13 |
|
EN55015 |
||
|
Fcc Part15B |
||
|
其他 |
尺寸/Size |
|
|
重量/Net weight |
/ |
