| Authentication: |
|
Model |
|

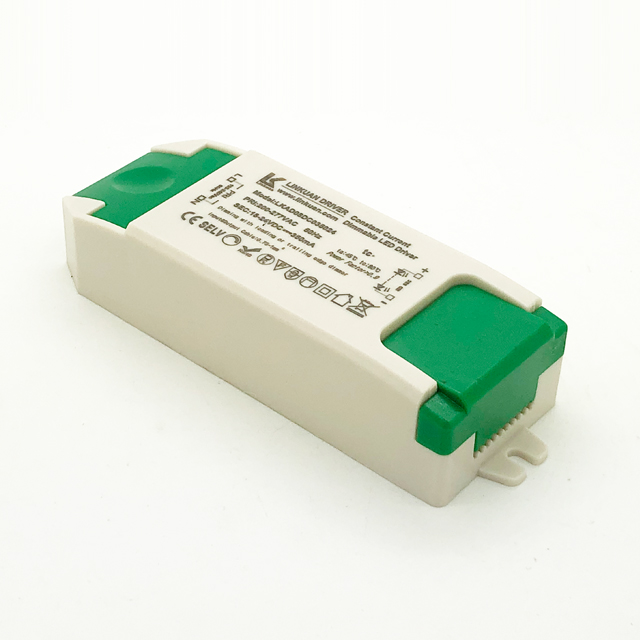

LKAD014DV2.0 |
|
輸出Output |
電壓/Rated voltage |
36V |
|
空載電壓/No-load Voltage |
45V |
|
|
DC電壓范圍/DC voltage range |
26-40V |
|
|
DC電流范圍/DC current range |
300mA |
|
|
電流精度/Current precision |
(+/-)5% |
|
|
額定功率/Rated power |
12W |
|
|
開機延時/Setup Time |
|
|
|
輸入Input |
AC電壓范圍/AC Voltage range |
180-240VAC |
|
頻率/Frequency |
50/60hz |
|
|
諧波/THD |
|
|
|
功率因數/Power factor |
0.937/220VAC |
|
|
使用環境Environment Requirements |
工作溫度/濕度要求Operating Temp./RH |
-30～+50℃/20～95% |
|
儲存溫度,濕度要求 Storage Temp./RH |
-40～+80℃/10～95% |
|
|
安全和電磁兼容 |
認證標識/Certificate |
CE Standard |
|
安全規范/Safety standard |
CE Standard |
|
|
電磁兼容/EMC compliance |
CE Standard |
|
|
耐壓/Withstand voltage |
CE Standard |
