| Authentication: |

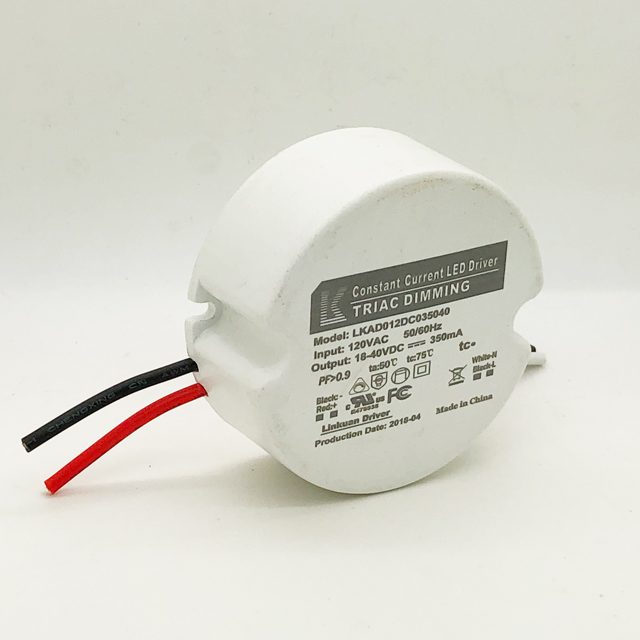

| Model | LKAD012D | ||
| 輸入 Input | AC電壓范圍/AC Voltage range | 90-135V | |
| 頻率/Frequency | 50/60hz | ||
| 諧波/THD | / | ||
| 功率因數/Power factor | 0.99/110VAC | ||
| 輸出 Output | 額定電壓/Rated voltage | 38V | |
| 空載電壓/No-load Voltage | 46V | ||
| DC電壓范圍/DC voltage range | 30-45V | ||
| DC電流范圍/DC current range | 330-350mA | ||
| 電流精度/Current precision | (+/-)3% | ||
| 額定功率/Rated power | 13W | ||
| 開機延時/Setup Time | ≤0.5s/230VAC | ||
| 使用環境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+45℃/20～95% | |
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | ||
| 安全和電磁兼容 | 認證編號/Certificate | UL:E478938 | |
| FCC:WTD14S0918346E | |||
| 其他 | 尺寸/Size | Dia65xH26mm | |
| 重量/Net weight | 74g | ||
