| Authentication: |

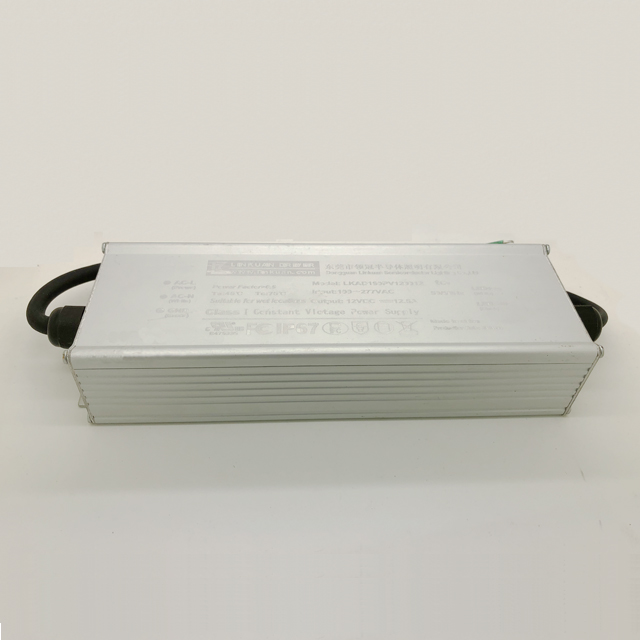

| Model | LKAD180PV | ||
| 輸出 Output | 電壓/Rated voltage | 12V | |
| DC電壓范圍/DC voltage range | 12V | ||
| DC電流范圍/DC current range | 1000-20000mA | ||
| 電流精度/Current precision | (+/-)3% | ||
| 額定功率/Rated power | 192W | ||
| 開機延時/Setup Time | ≤0.5s/110VAC | ||
| 輸入 Input | AC電壓范圍/AC Voltage range | 100-277V | |
| 頻率/Frequency | 50/60Hz | ||
| 諧波/THD | ≤12%/110VAC | ||
| 功率因數(shù)/Power factor | 0.99/110VAC | ||
| 使用環(huán)境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+50℃/20～95% | |
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | ||
| 安全和電磁兼容 | 認證標識/Certificate | UL,FCC,CCC and RoHS | |
| 安全規(guī)范/Safety standard | UL8750/UL1310 | ||
| 電磁兼容/EMC compliance | EN5015 | ||
| 耐壓/Hipot voltage | 4000V | ||
| 抗雷擊/Suget test | 6000V | ||
| 其他 | 尺寸/Size | L209+19*W72*45 | |
| 重量/Net weight | 1.4kgs | ||
